RevoFit® Lamination Kit with Click® Reel
Quick Links
| Part # | Description |
|---|
Product Information

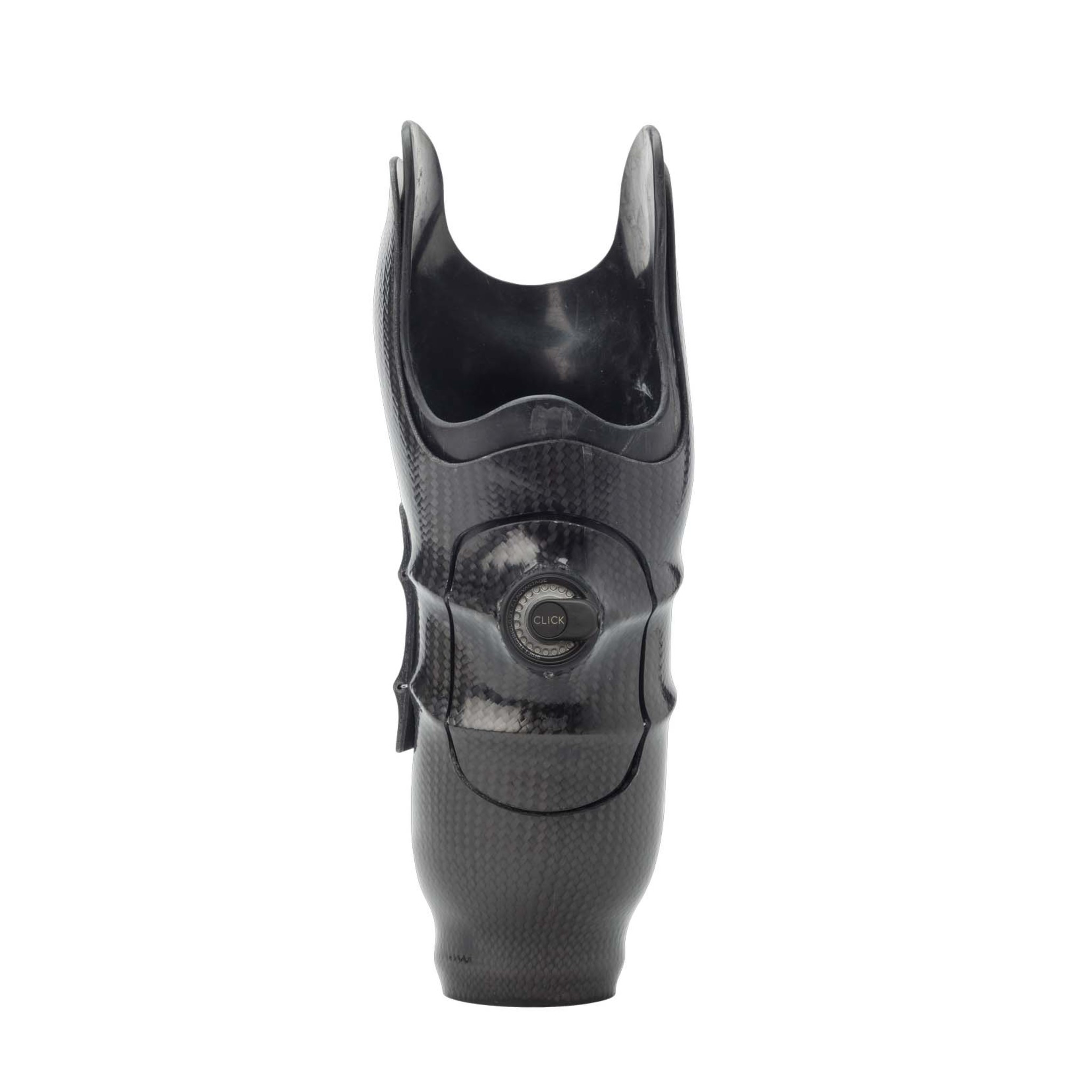

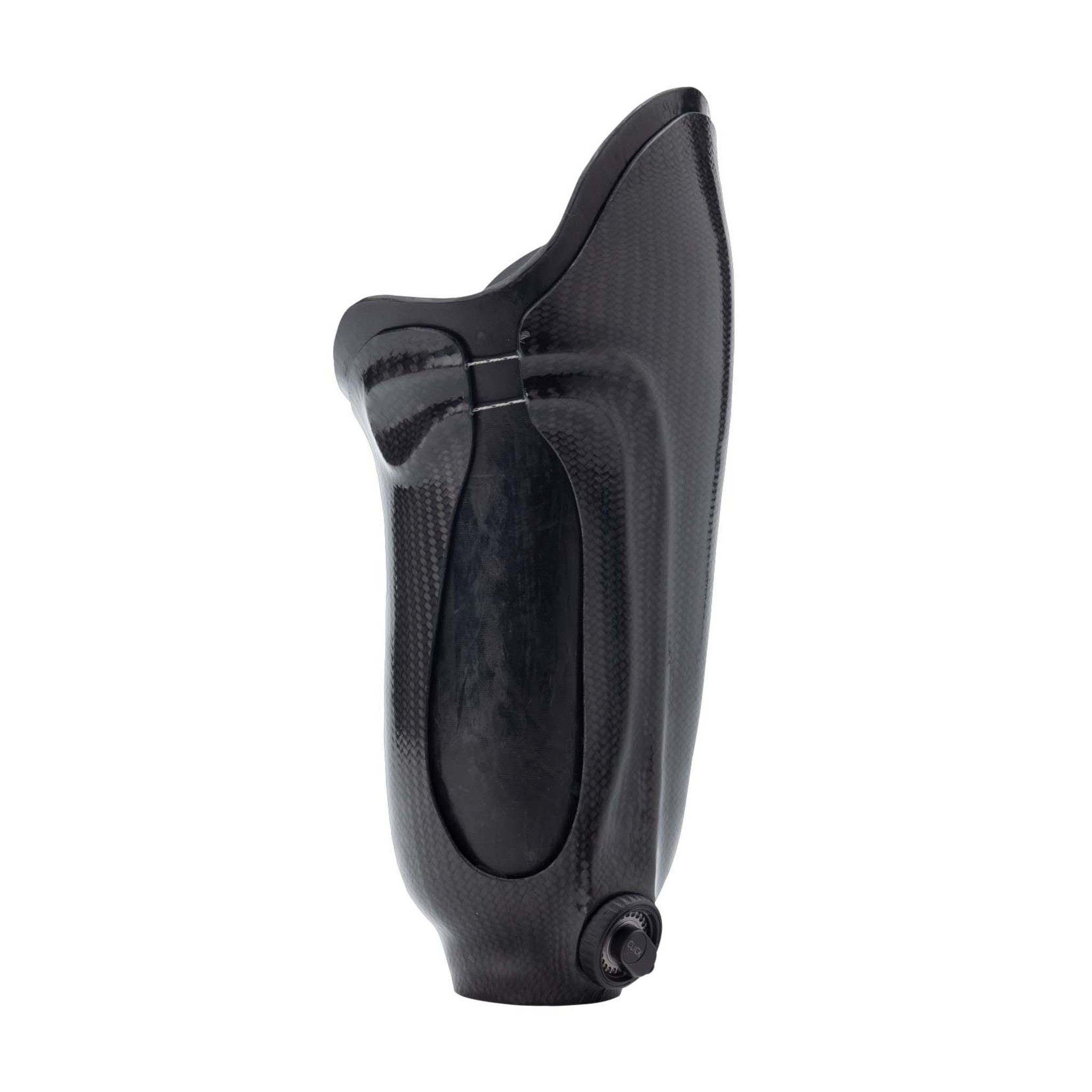

This single RevoFit Lamination Kit with the Click Reel allows you to fabricate user-controlled adjustability anywhere on a device. For Bi-Value and other large gap designs, use the Slider Lamination Kit (RP-309) for added functionality and safety. The Click Reel innovation creates adjustable devices with a lower streamlined profile, micro/macro adjustment that incrementally tightens and loosens with increased durability. The RevoFit is now covered under HCPCS code L5783 - Addition to Lower Extremity, user adjustable, mechanical, residual limb volume management system.
- RevoFit Kits are best for patients with:
- Significant volume changes
- Rotation issues
- Weight and activity changes
- Distal tibia/femur pressure
- Limb levering in socket
- Skin breakdown issues
- Bulbous distal ends
- 10-Pack Fabrication Kit Available
- User Weight Limit: 300lbs (135kg)
- Kit Includes:
- 1x Click Reel
- 1x Lamination Collar
- 2m HD Lace
- 1x Metal Lace Feeder
- 3x Plastic Lace Feeders
- 1x Reel Tool
- 1.8m Lamination Tubing
Specifications
- Build Height of Click® Reel: 14mm visible profile, 24mm total
- Reel Diameter: 42mm
- Reel Weight: 71g
- Collar Diameter: 42mm
- Tube/Sheath Length: 1.8m
- Tube Outer Diameter: 3.2mm
- Lace: 2m HD (High Durability) Lace
Please note: Instructions for system are available by using the QR Code on the system’s packaging.
