10 mm Offset Tube Clamp
Quick Links
Product information

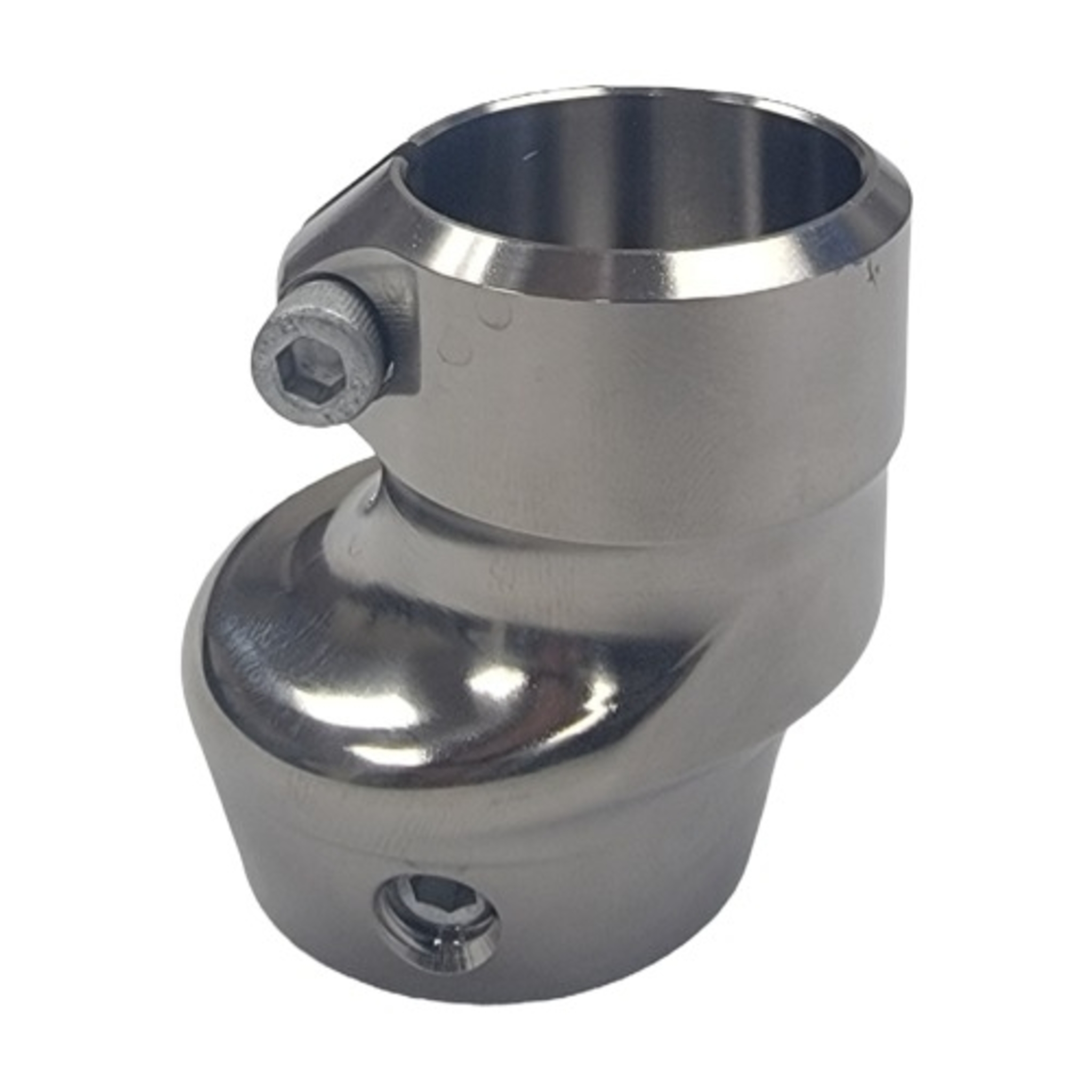

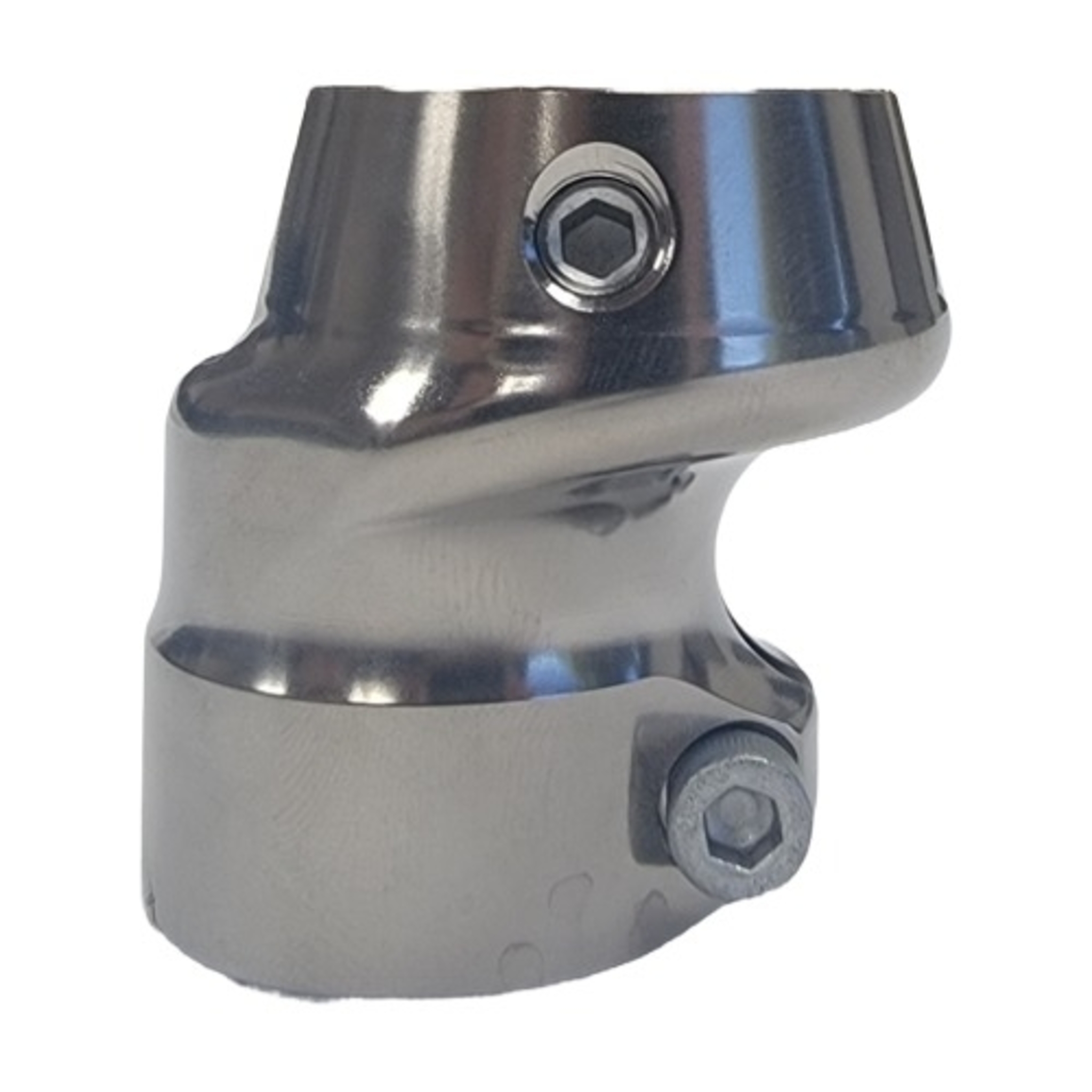

The 10 mm Offset Tube Clamp is used to connect any component with 30 mm tube system. The four set screws are used for anchoring the mating pyramid system as well as for making angular adjustment for alignment. The offset is set at 5mm from the center of the tube clamp.
- For usage when extra alignment is needed
- Ideal when using with pin suspension locks, where prosthetic and pin alignment can be easily adjusted using the offset clamp
- Provides versatility in that the offset position can be rotated in 360 degrees
- Apply recommended torque to pylon clamp screws and alignment adjustment screws for connection
- Waterproof
Specifications
- Material: Titanium
- Weight Limit: 300 lbs (136 kg)
- Build Height (mm): N/A
- Assembly Weight (g): 139
- Torque (Nm): 7 (M6 Set Screw)
- Warranty: 24 months from invoice date
| Endoskeletal Type: | Tube Clamps |
|---|---|
| User: | Adult |
| Material: | Titanium |
