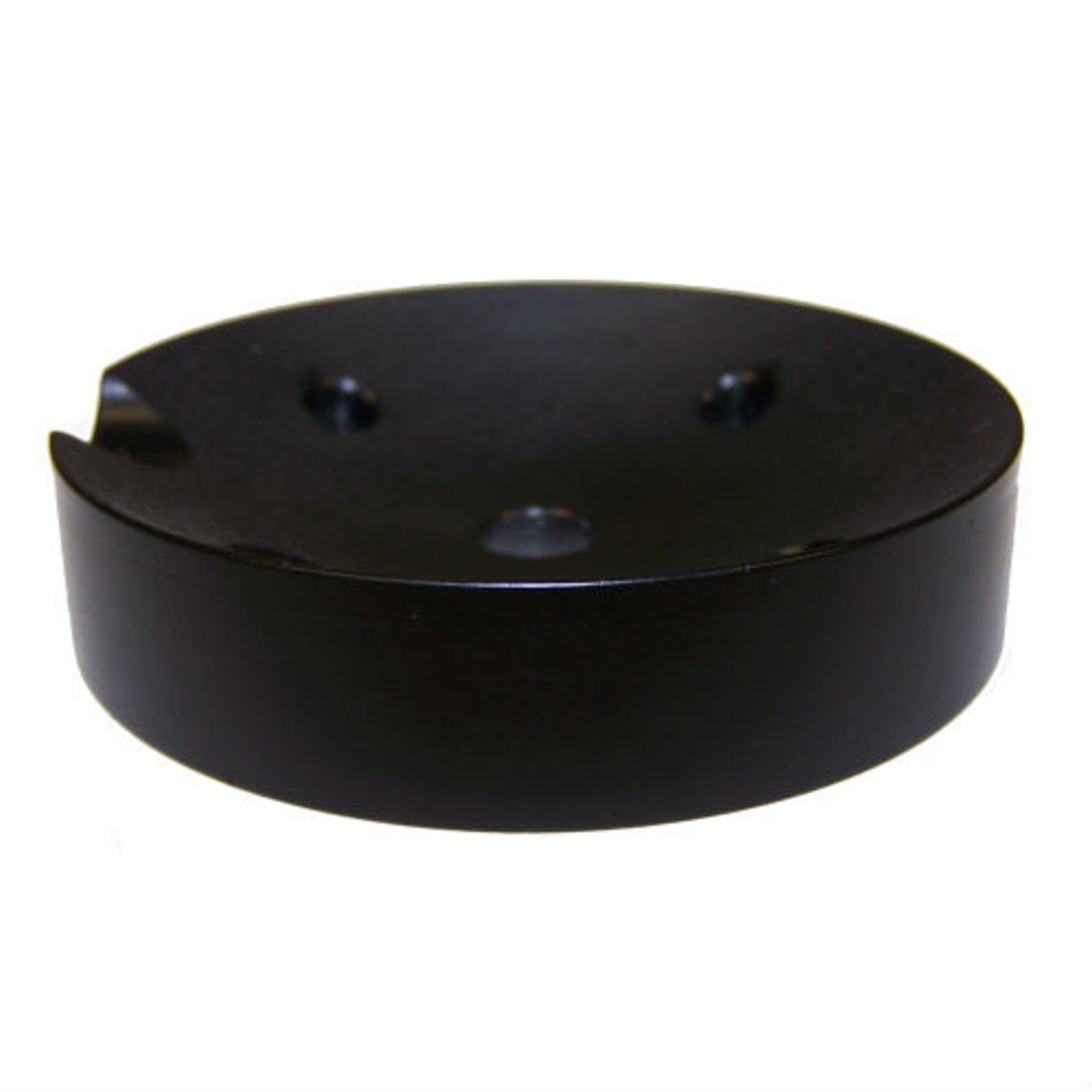

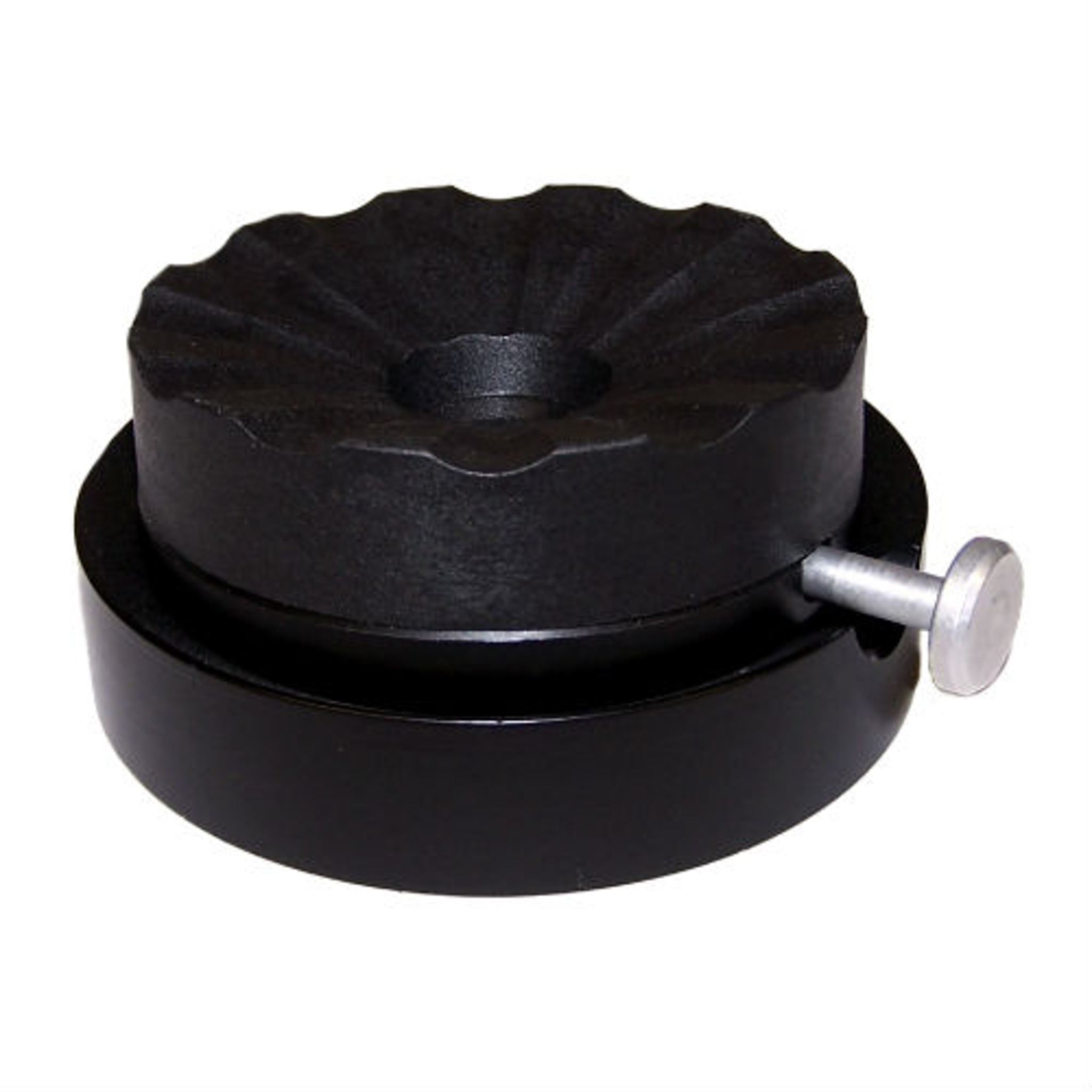

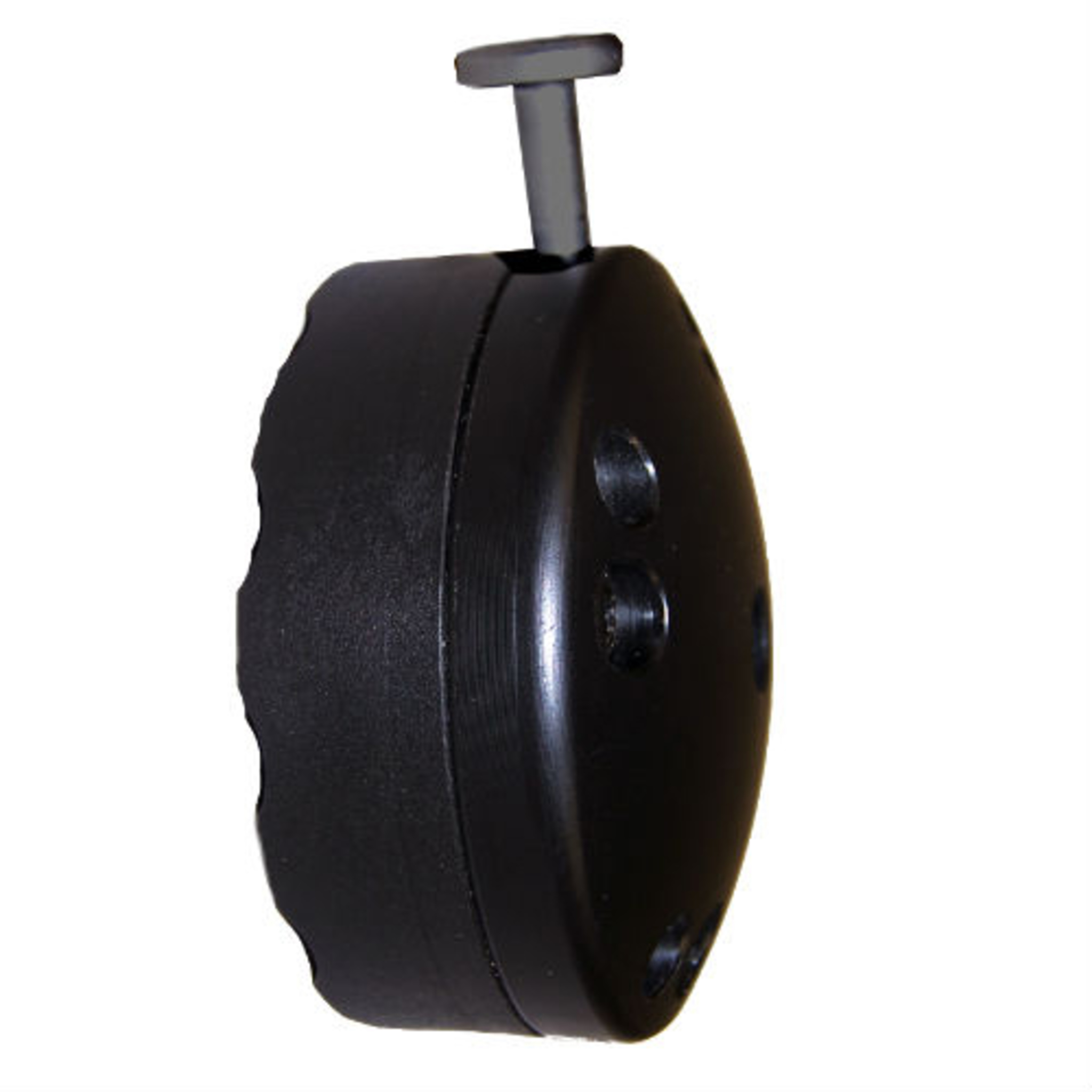

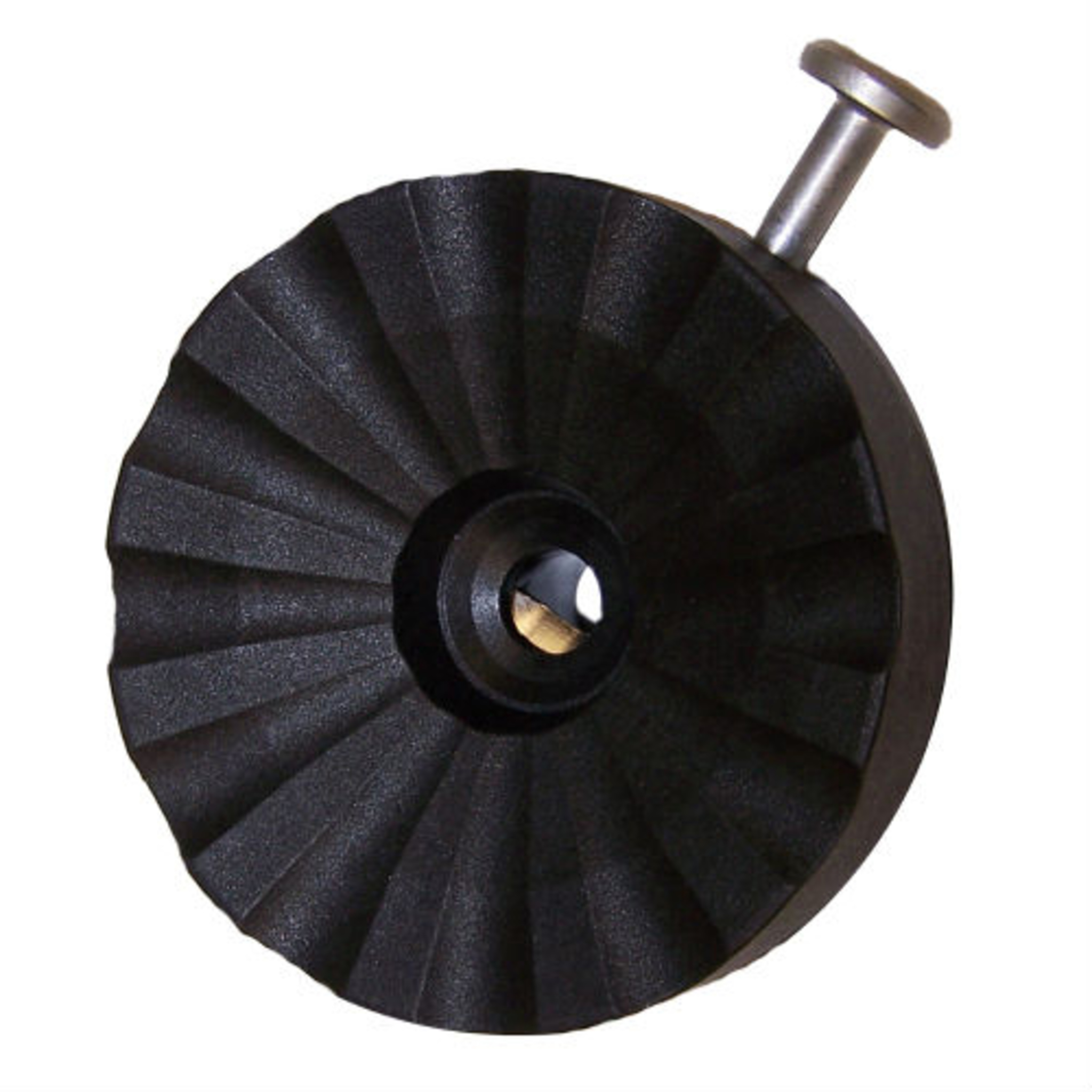

3Genesis A - Push Lock with Round Bottom and Guide Grooves
3Genesis A - Push Lock with Round Bottom and Guide Grooves
Product number:
3GEN-AGR-PBS-G1.50-M10
Quick Links
Product information
The Genesis A Round Bottom Lock has a multi-contoured surface to accommodate multiple liners. It has a shorter button and the guide grooves provide simple pin engagement.
Includes:
- (1) distal attachment plate
- (2) Plunger pins of choice, with o-rings
- (2) 0.5 mm pin adjustment washers
- (2) 1.0 mm pin adjustment washers
- (4) M6x40 flat head cap screws
- (1) 0.017 fl oz. tube of Loctite®
Specifications
- Lock Type: Shuttle
- Fabrication Technique: Lamination, Thermoforming
- Housing Material: N/A
- Amputation Level: Transtibial, Transfemoral
- Activity Level: N/A
- Weight Limit: 350lbs (159kg)
- Product Weight (g): 96
- Build Height (mm): N/A
- Distal Attachment: 4-Hole
- Warranty: 12 months from purchase date
| User: | Adult |
|---|---|
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Suspension Type: | Locks |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | High Weight Limit |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs) |
