Airpuck™ Vacuum System
Quick Links
Product information

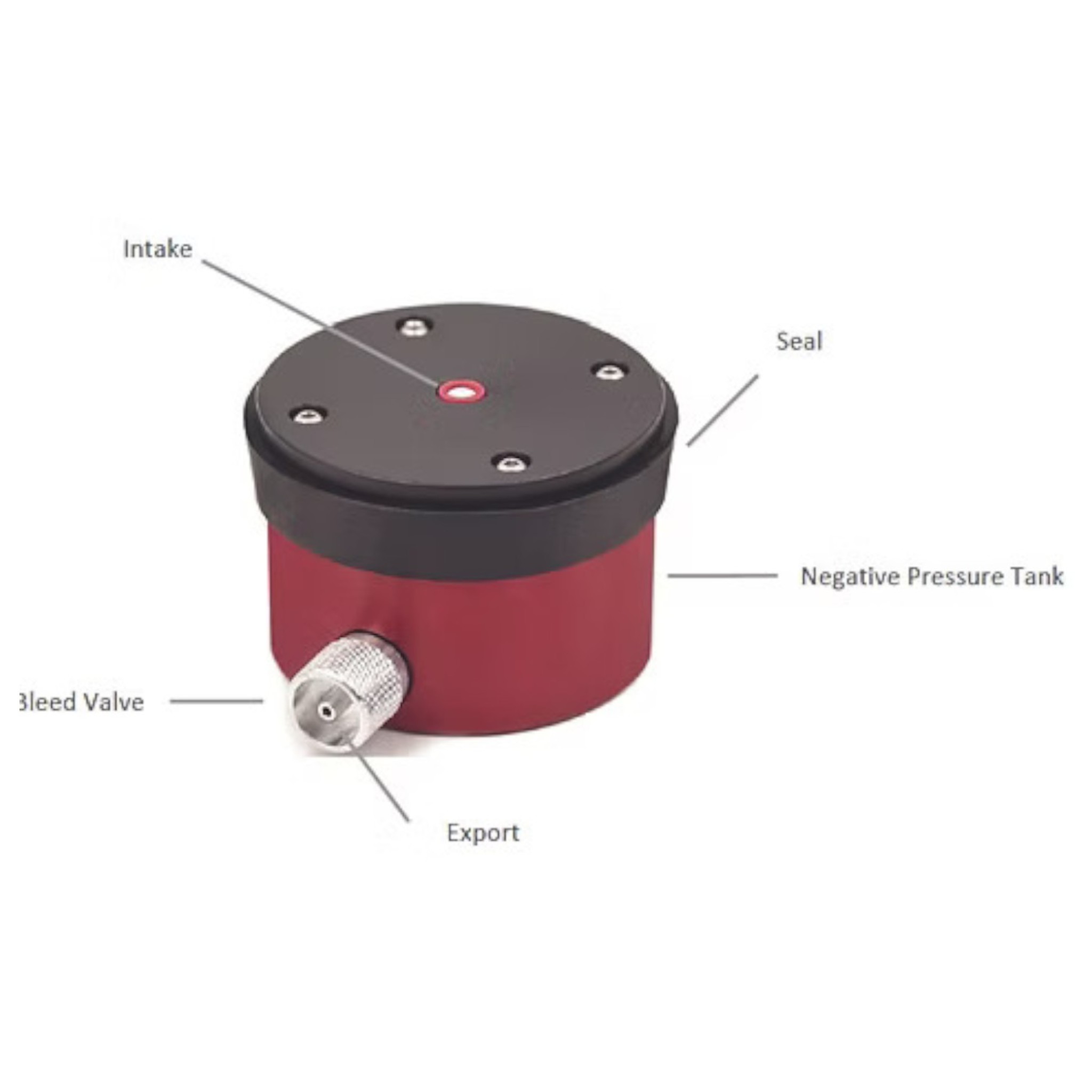

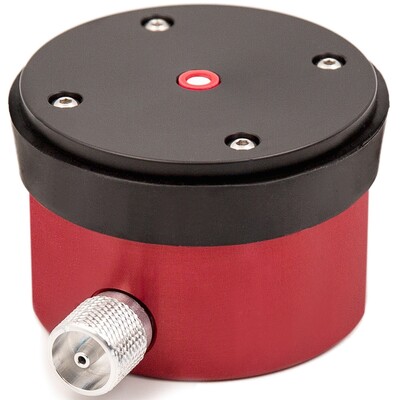

The AirPuck™ system is a modular socket vacuum reservoir that can be connected to any external vacuum source and has to be evacuated once to maintain negative pressure within the prosthetic socket for extended periods of time. It works great with thermoplastic or laminated socket configurations and is ideal for water sports as well as diagnostic fittings.
- 5 cubic inch negative pressure reservoir
- Vacuum tight bleed valve
- No electric components
- Waterproof
- Self sealing design
- Vacuum lasts all day long (one evacuation)
- Can be used with a sleeve or sealing liner
- Drop in fabrication
- Patent pending
Specifications
- Amputation Level: Transfemoral, Transtibial
- Activity Level: N/A
- Housing Material: N/A
- Max Vacuum (inHg): 26
- Weight Limit: 300lbs (136kg)
- Product Weight (g): 200
- Height (mm): 48
- Diameter (mm): 64
- Trial Period: N/A
- Warranty: 12 months from delivery date
Certification is required prior to purchasing kits.
| User: | Adult |
|---|---|
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Suspension Type: | Vacuum Systems |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | Exclusive Distributor |
