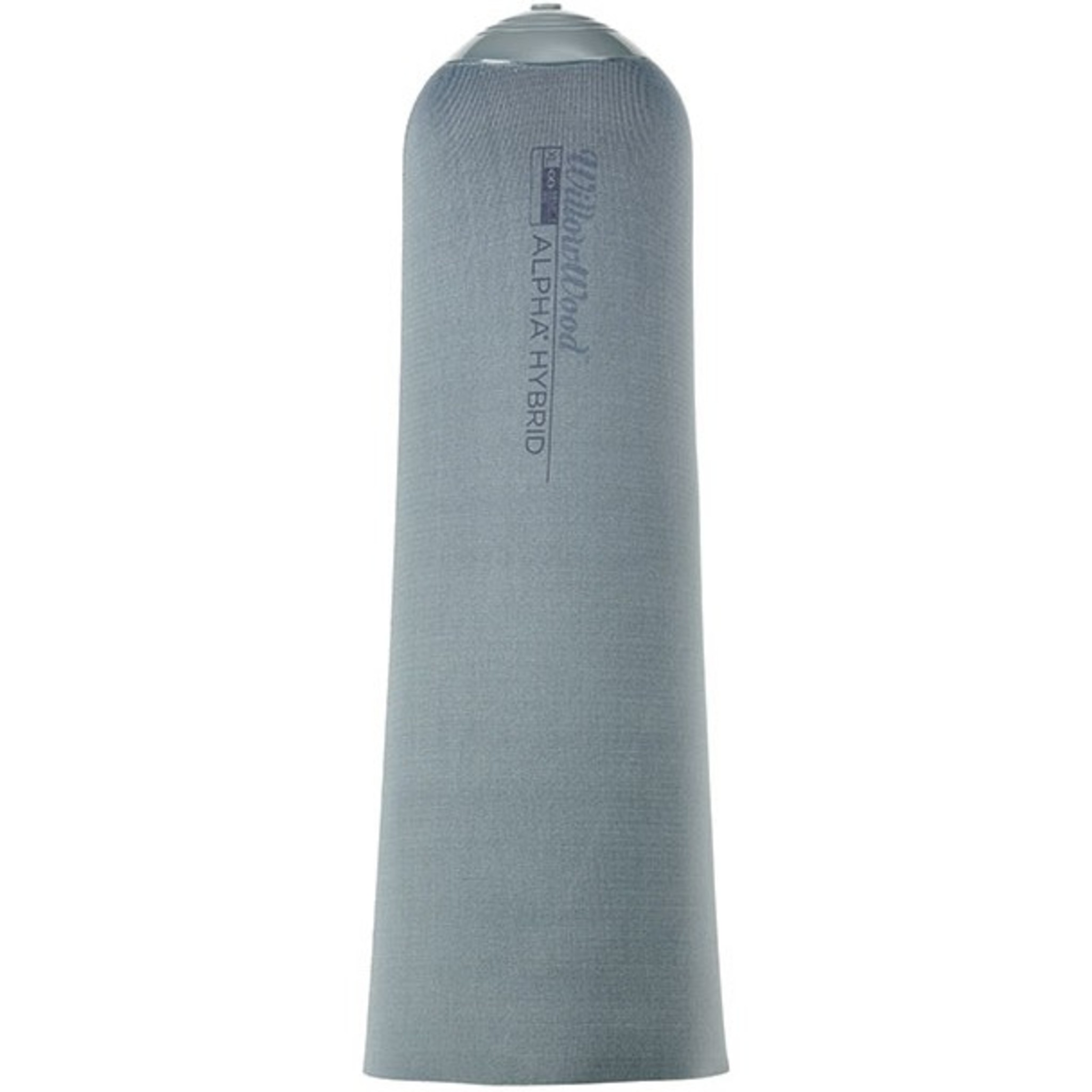

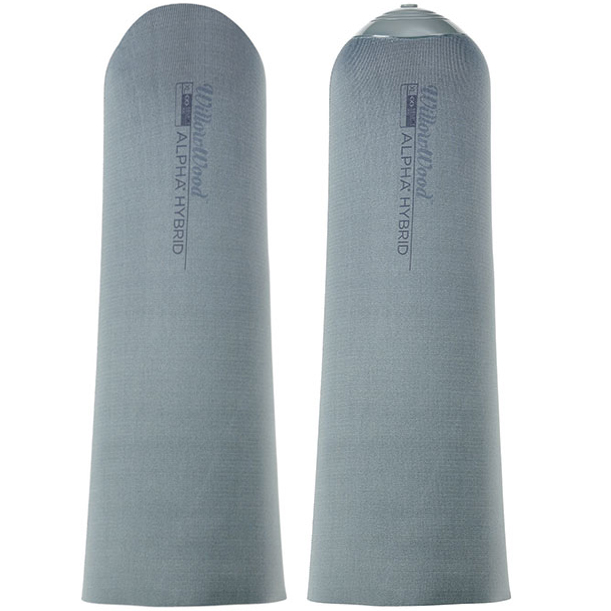

Alpha Hybrid® AK Liner
Quick Links
Product information
The Alpha Hybrid® AK Liner with symmetrical profile features Hybrid Gel. Hybrid gel features a higher durometer that combines durability with comfort. The liner utilizes one-way stretch fabric for controlled pistoning without a rigid distal matrix and provides tissue compression without uncomfortable pressure on the limb. The locking version features an accordion-style umbrella that blends with a patient’s anatomy for an almost unnoticeable feeling.The Alpha Hybrid® AK Liner with symmetrical profile features Hybrid Gel. Hybrid gel features a higher durometer that combines durability with comfort. The liner utilizes one-way stretch fabric for controlled pistoning without a rigid distal matrix and provides tissue compression without uncomfortable pressure on the limb. The locking version features an accordion-style umbrella that blends with a patient’s anatomy for an almost unnoticeable feeling.
- Hybrid Gel is skin-friendly and resists excessive elongation
- Symmetrical Profile allows the liner to be rotated to increase liner longevity
- Compatible with elevated vacuum
- Available in locking and cushion
- Fabric Cover: Select fabric
Specifications
- Amputation Level: Transfemoral
- Activity Level: K1, K2, K3, K4
- Type: Cushion, Locking
- Material: Thermoplastic Elastomer
- Cover: Fabric Cover

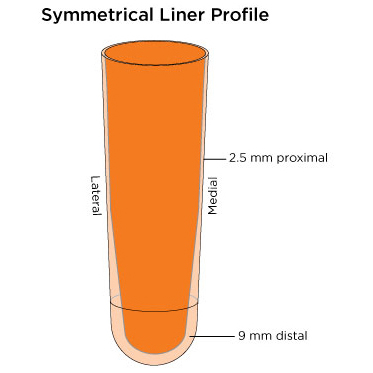

- Profile: Symmetrical
- Style: Standard
- Color: Gray
- Thickness (mm): 9:2.5 (Tapered)
- Sizes (cm): M+-XL
- Trial Period: 30 days from fit date
- Warranty: 12 months from fit date
To determine proper sizing, please see the transfemoral sizing and liner thickness charts
| User: | Adult |
|---|---|
| Amputation Level: | Transfemoral (TF/AK) |
| Activity Level: | K1 (Low), K2 (Moderate), K3 (High), K4 (Very High) |
| Liner Type: | Cushion, Locking |
| Liner Style: | Standard |
| Liner Thickness: | 9 mm (3/8 in) |
| Liner Profile: | Symmetrical |
| Key Features: | Skin Care Infused |
| Material: | Hybrid |
