Genesis A - Push Lock with Reinforced Bushing and Guide Grooves
Genesis A - Push Lock with Reinforced Bushing and Guide Grooves
Product number:
GEN-ARG-PBL-G2.50-M10
Quick Links
| Part # | Description |
|---|
Product Information

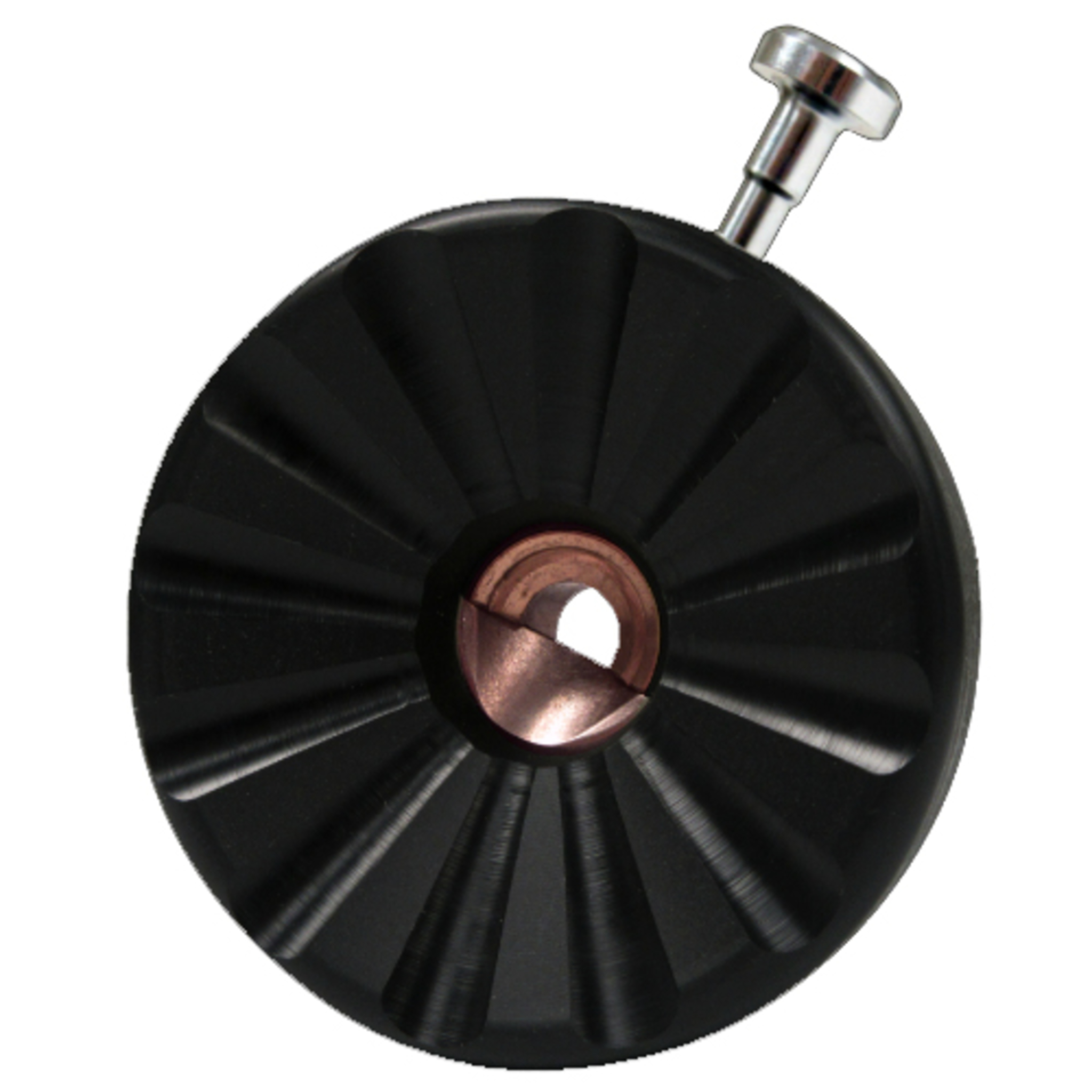

The Genesis A Push Lock with Reinforced Bushing and Guide Grooves utilizes the original Bulldog® Genesis push shuttle lock with a solid contact mechanism. It has reinforced bronze bushing to extend the life of the lock and Guide Grooves® help to provide simple pin engagement.
Includes:
- (2) Plunger pins of choice, with o-rings
- (2) 0.5 mm pin adjustment washers
- (2) 1.0 mm pin adjustment washers
- (4) M6x25 flat head cap screws
- (1) 0.017 fl oz. tube of Loctite®
Specifications
- Lock Type: Shuttle
- Fabrication Technique: Lamination, Thermoforming
- Housing Material: N/A
- Amputation Level:Transfemoral, Transtibial
- Activity Level: N/A
- Weight Limit: 350 (159kg)
- Product Weight (g): 120
- Build Height (mm): 25
- Distal Attachment: N/A
- Warranty: 12 months from purchase date
| User: | Adult |
|---|---|
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Suspension Type: | Locks |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | High Weight Limit |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs), 159 kg (350 lbs) |
| Material: | Stainless Steel |
