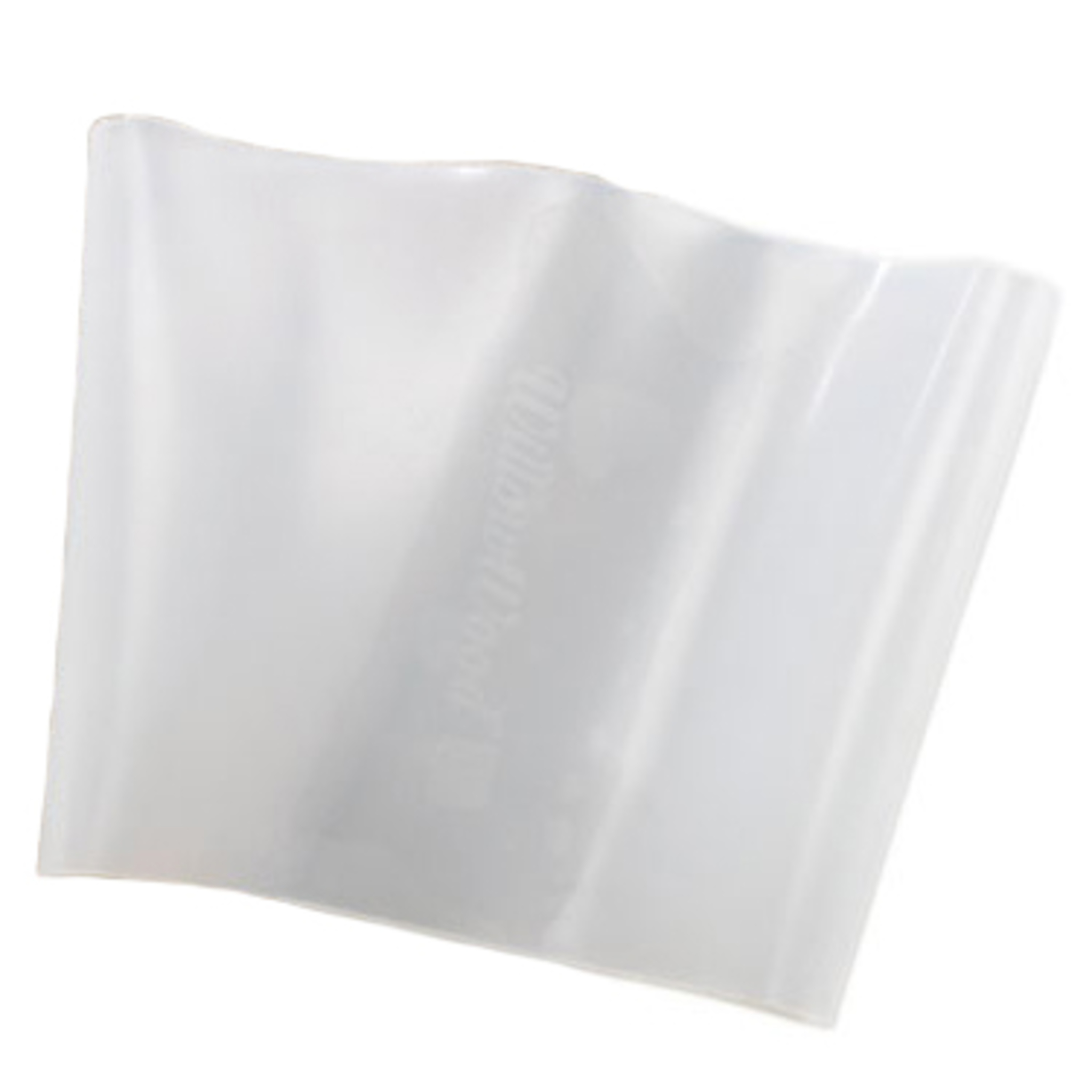

Replacement sealing cuff for LimbLogic® Sleeve.

The LimbLogic® M is an elevated vacuum suspension system that operates by compressing with each step and is completely integrated into the prosthesis. Low or high vacuum may be set by turning a screw on the posterior side of the pump. Additionally, by turning a screw inset into the distal pyramid, stiffness of the pump and its amount of shock absorption may be increased or decreased.

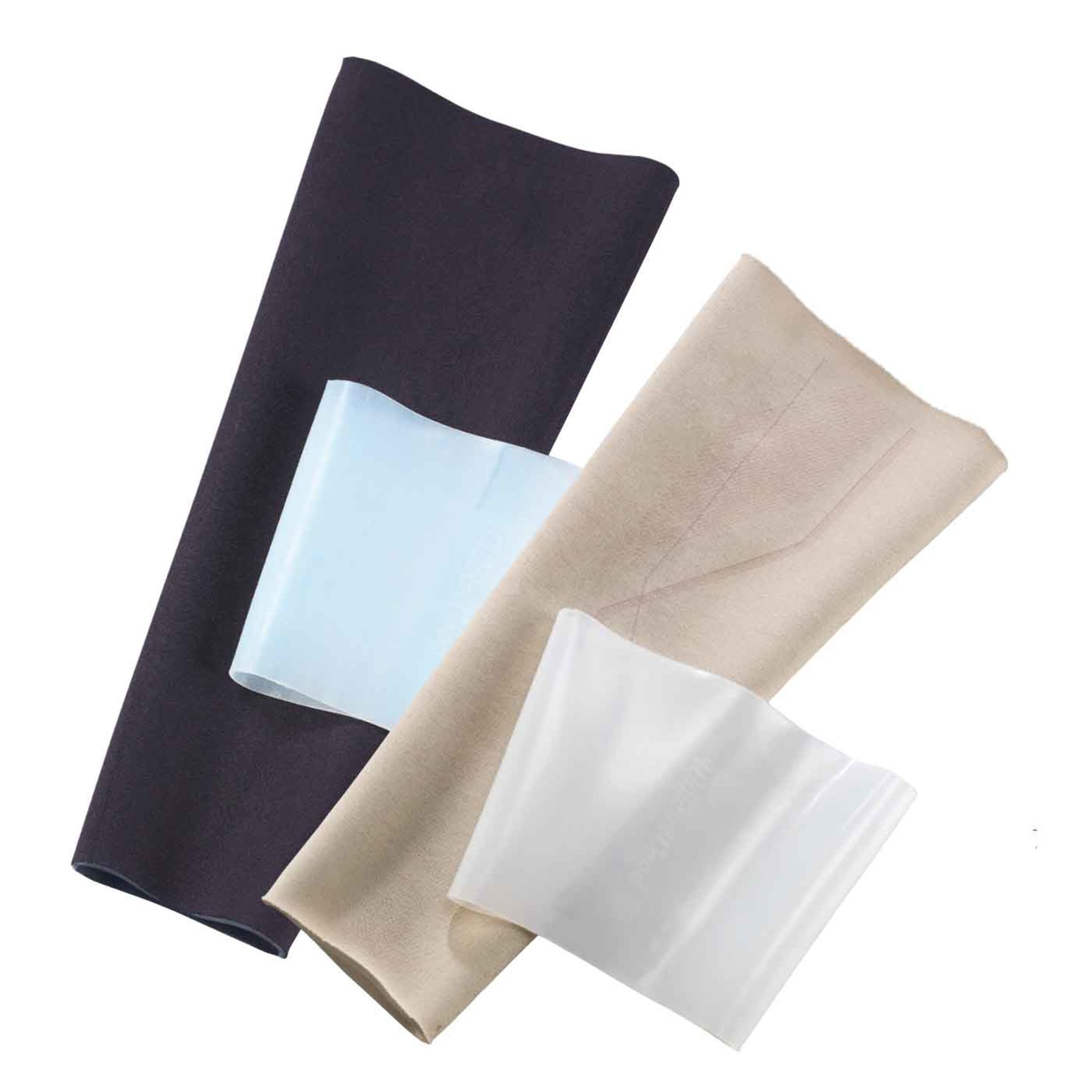

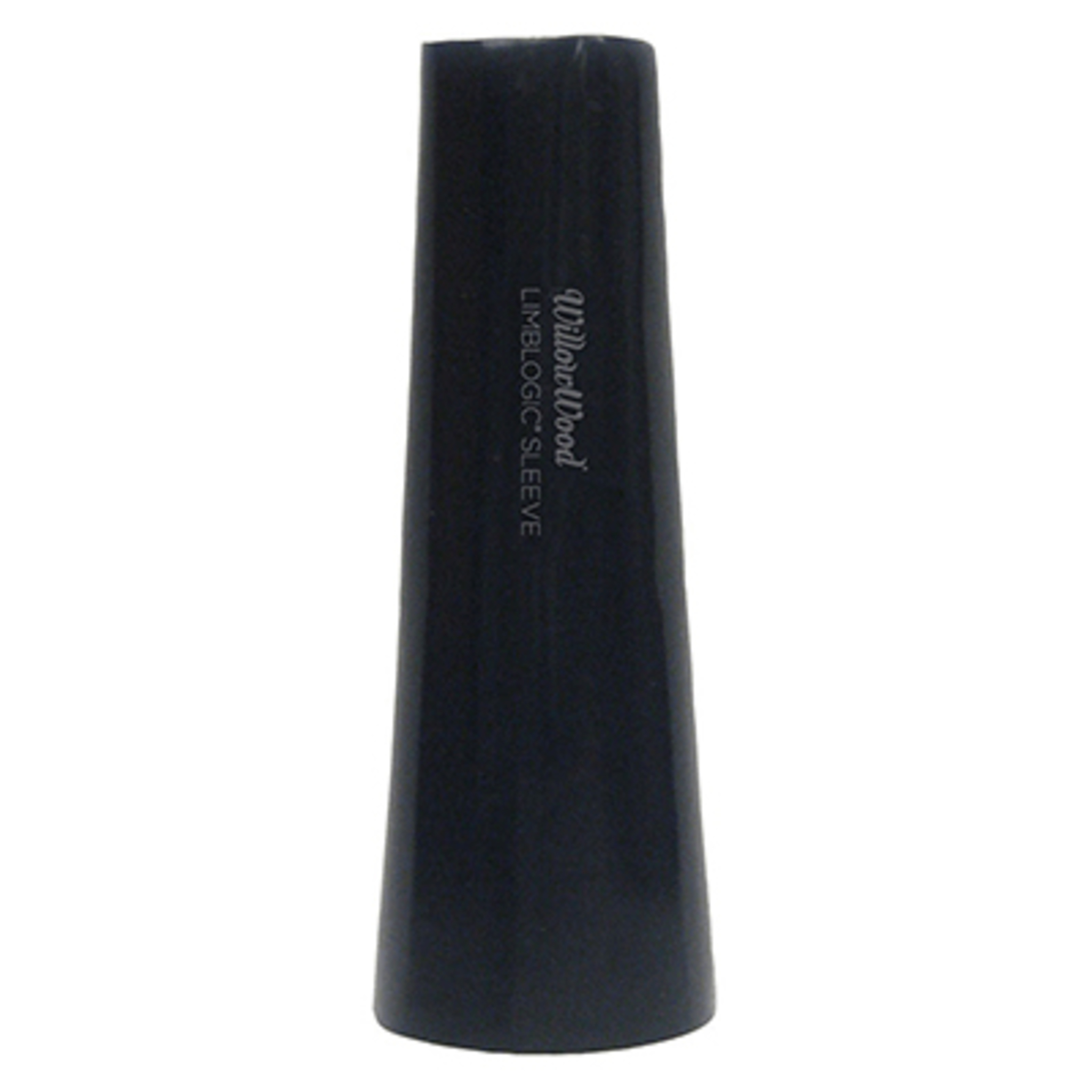

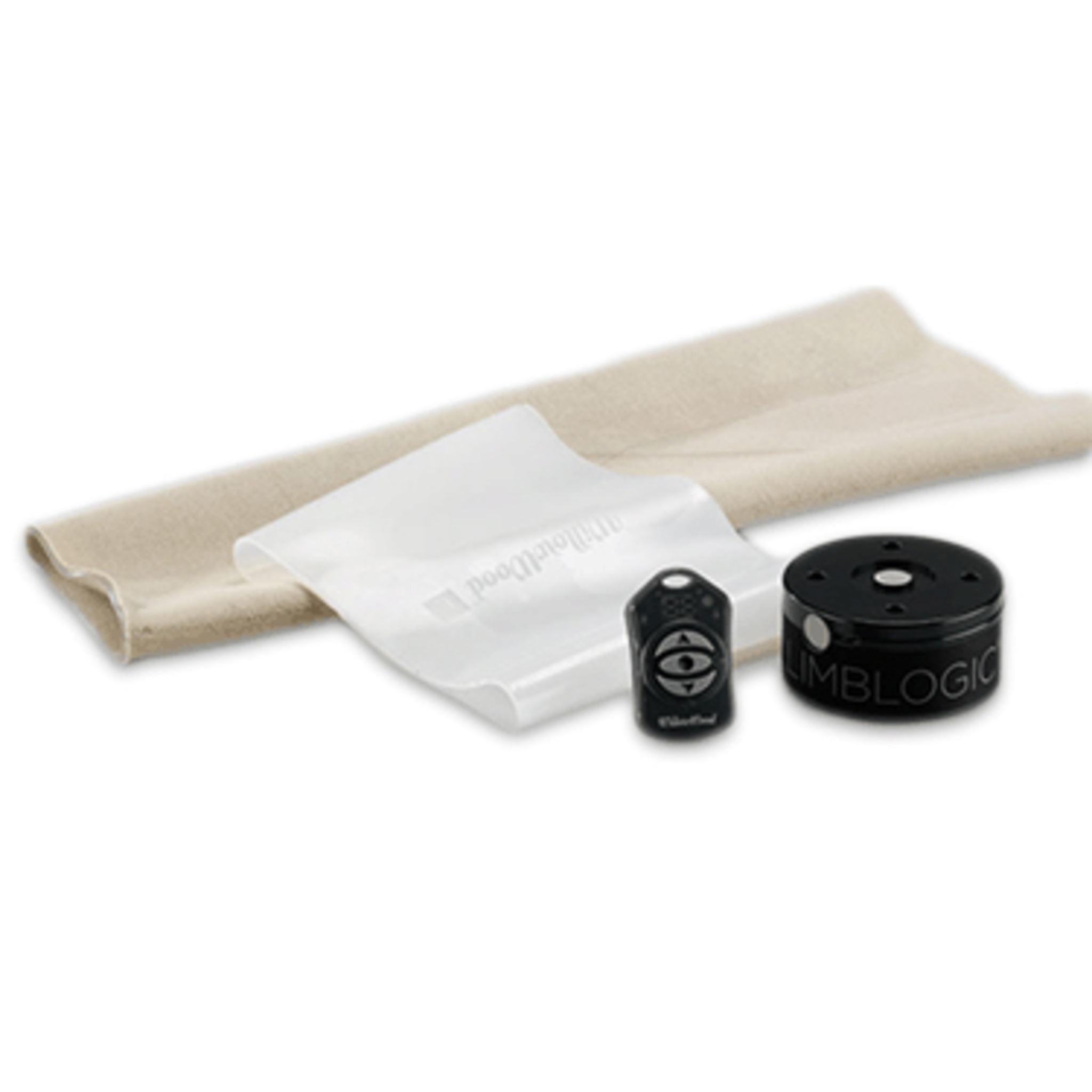

The LimbLogic® vacuum system features a small Bluetooth® Low Energy fob, inductive charging, and a choice of mounting style. The controller is offered as a distal-mount 4-hole controller to mount in line with a prosthesis or, when clearance is a concern, a side-mount to place on the side of a socket. The system continually monitors a socket's vacuum level within a set range, maintaining a secure fit. Amputees may use the handheld fob or their iPhone or iPad to increase or decrease the vacuum level as desired. The LimbLogic® Controller is waterproof in fresh water to a depth of 3 meters (10 feet) for up to 12 hours at a time. The handheld fob should not be exposed to water.A silicone sleeve with repositionable cuff has been designed for use with the LimbLogic® system. The sleeve's repairable inner cuff may be rotated should a leak occur so that an airtight seal may be maintained at all times. The LimbLogic® Sleeve enhances knee flexibility and is constructed of medical-grade silicone.Inductive charging for easy patient useUtilizes a smaller, more convenient Bluetooth® Low Energy fobPump is waterproof in fresh water

The Alpha Silicone Liner uses a proprietary, platinum-cured, medical grade silicone designed for comfort and performance. The Alpha Silicone Liner uses Select fabric that controls pistoning without using a distal matrix. The Select fabric allows for circumferential stretch making it easy to don for numerous limb shapes. The flexible knee panel provides enhanced knee flexion and a broad range of knee motion. Alpha Silicone locking liner features an accordion umbrella that blends with patient anatomy, the cushion liner is ideal for use with elevated vacuum suspension.Non-Greasy and non-tacky surfaceRetrofits with Thermoplastic Elastomer Liners with Progressive ProfileFabric Cover: Select fabric
