Overlay TF™
Overlay TF™
- Select option
- 32-36 cm (12.6-14.2 in)
- 32-38 cm (12.6-15 in)
- 36-40 cm (14.2-15.8 in)
- 38-42 cm (15-16.5 in)
- 40-45 cm (15.8-17.7 in)
- 42-47 cm (16.5-18.5 in)
- 45-48 cm (17.7-18.9 in)
- 47-50 cm (18.5-19.7 in)
- 48-52 cm (18.9-20.5 in)
- 50-54 cm (19.7-21.3 in)
- 52-62 cm (20.5-24.4 in)
- 54-62 cm (21.3-24.4 in)
- Select option
- Pin
- Vacuum
- Select option
- 20-24 cm (7.8-9.5 in)
- 24+ cm (9.5+ in)
- 32+ cm (12.6+ in)
Quick Links
| Part # | Description |
|---|
Product Information

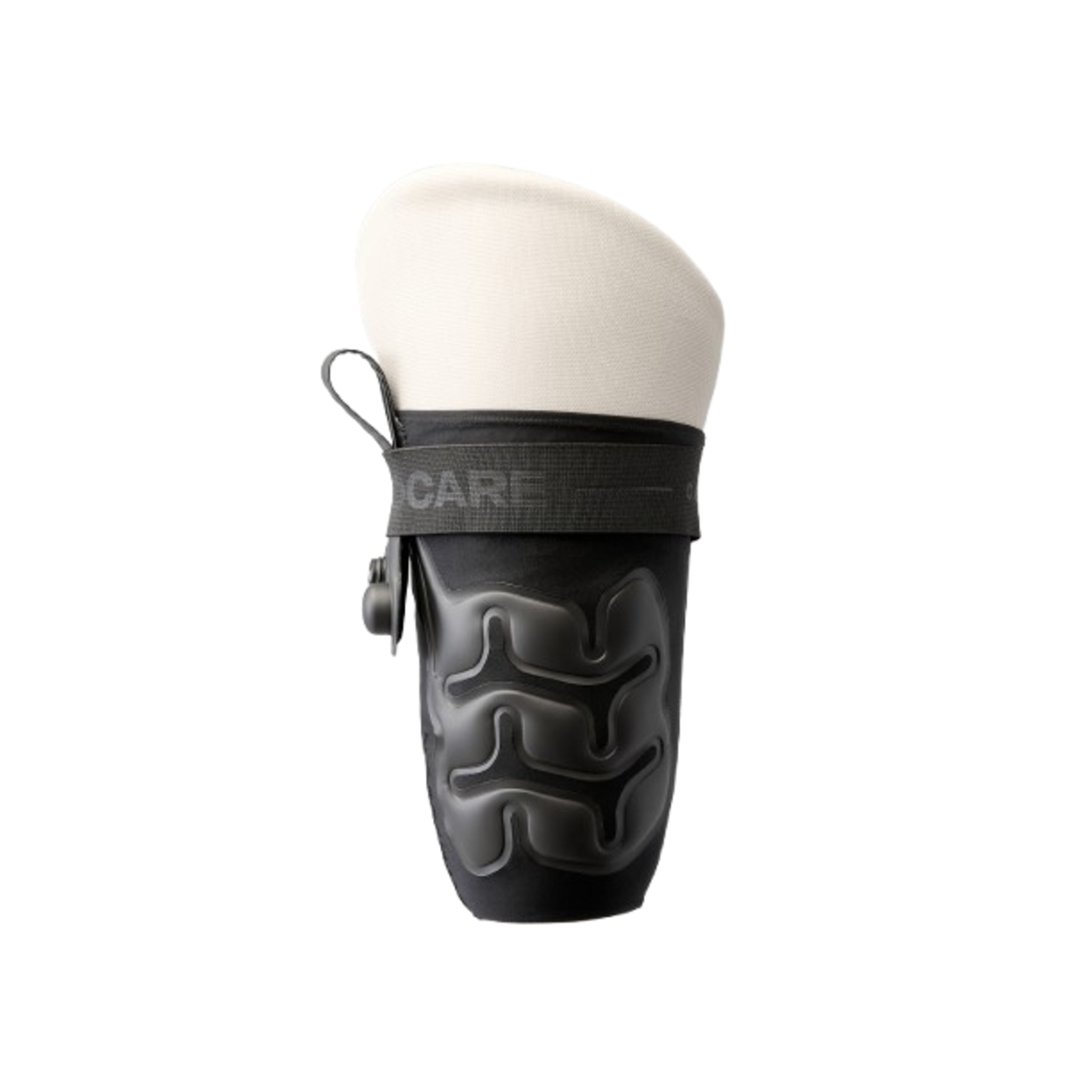

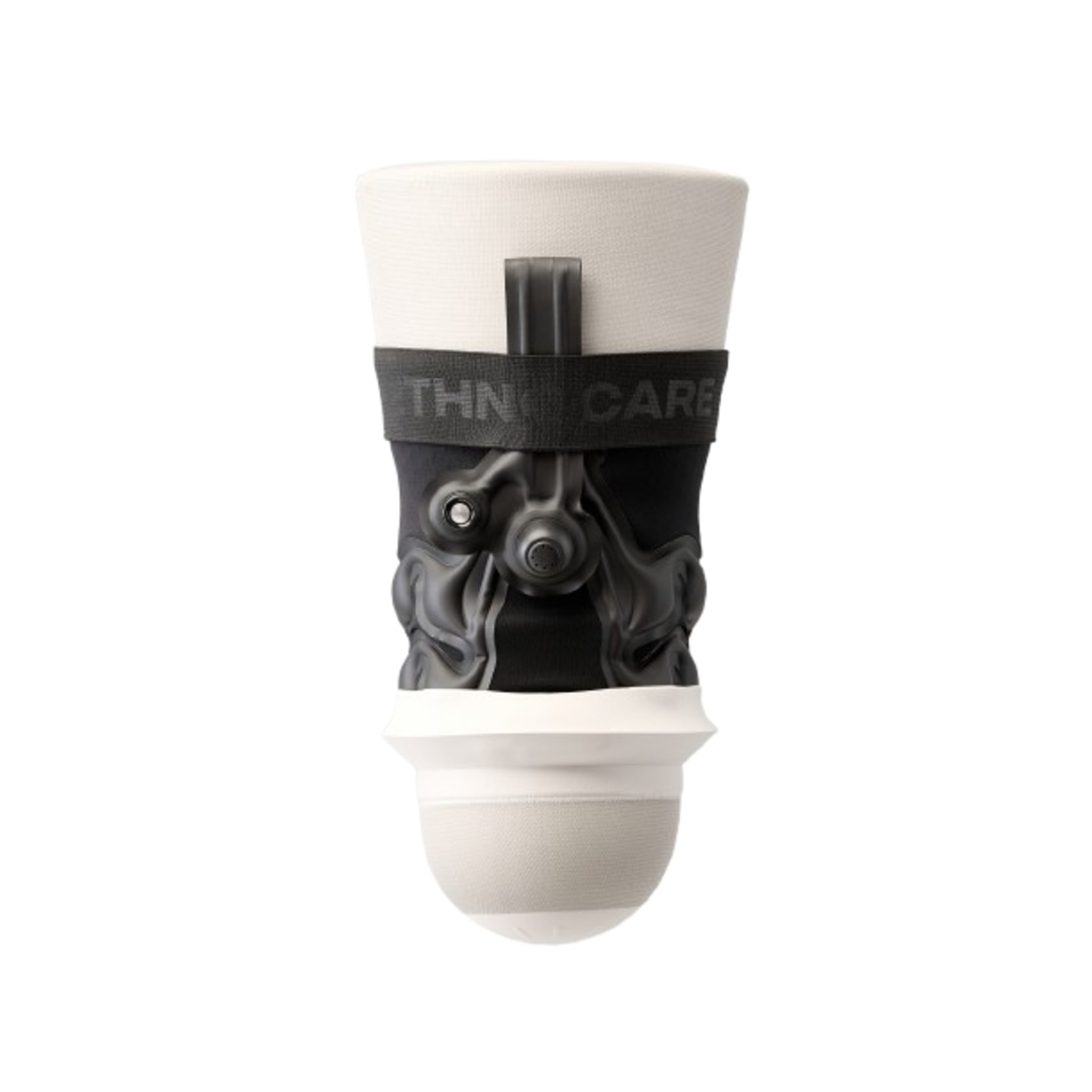

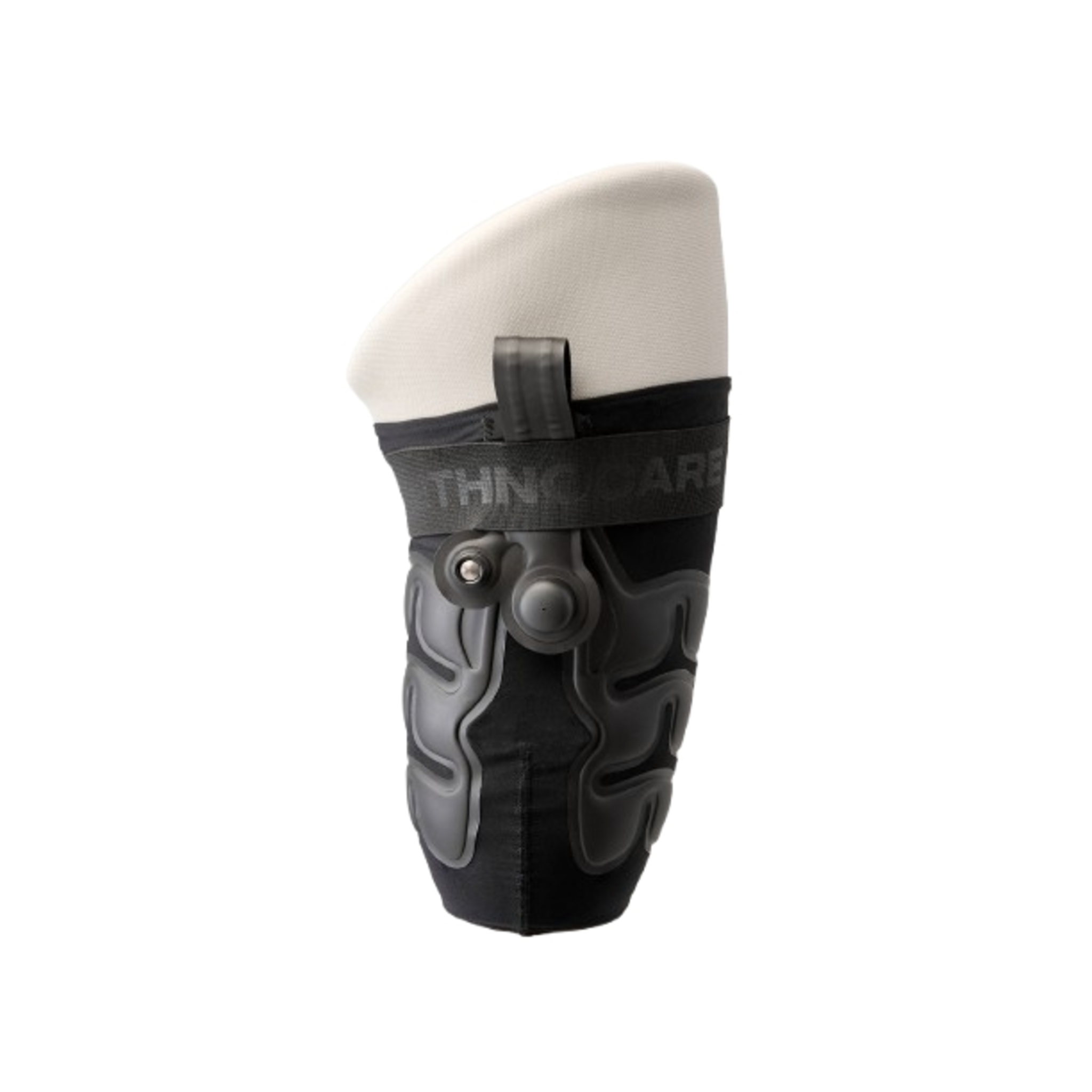

The Overlay TF™ is a breathable fabric sleeve with an integrated air expansion system that helps users compensate for residual limb volume variation and prosthetic socket fit challenges. The use of air enhances comfort and creates a stable, uniform fit for each user. Compatible with most K1-K4 activity level patients, the Overlay TF™ can be used with distal fixation, Seal ring liners, Lanyard, as well as active and passive vacuum systems.
- Adjustable cushioning volume from 2-ply to 15-ply
- Addresses pressure points and misalignment of the limb inside the socket

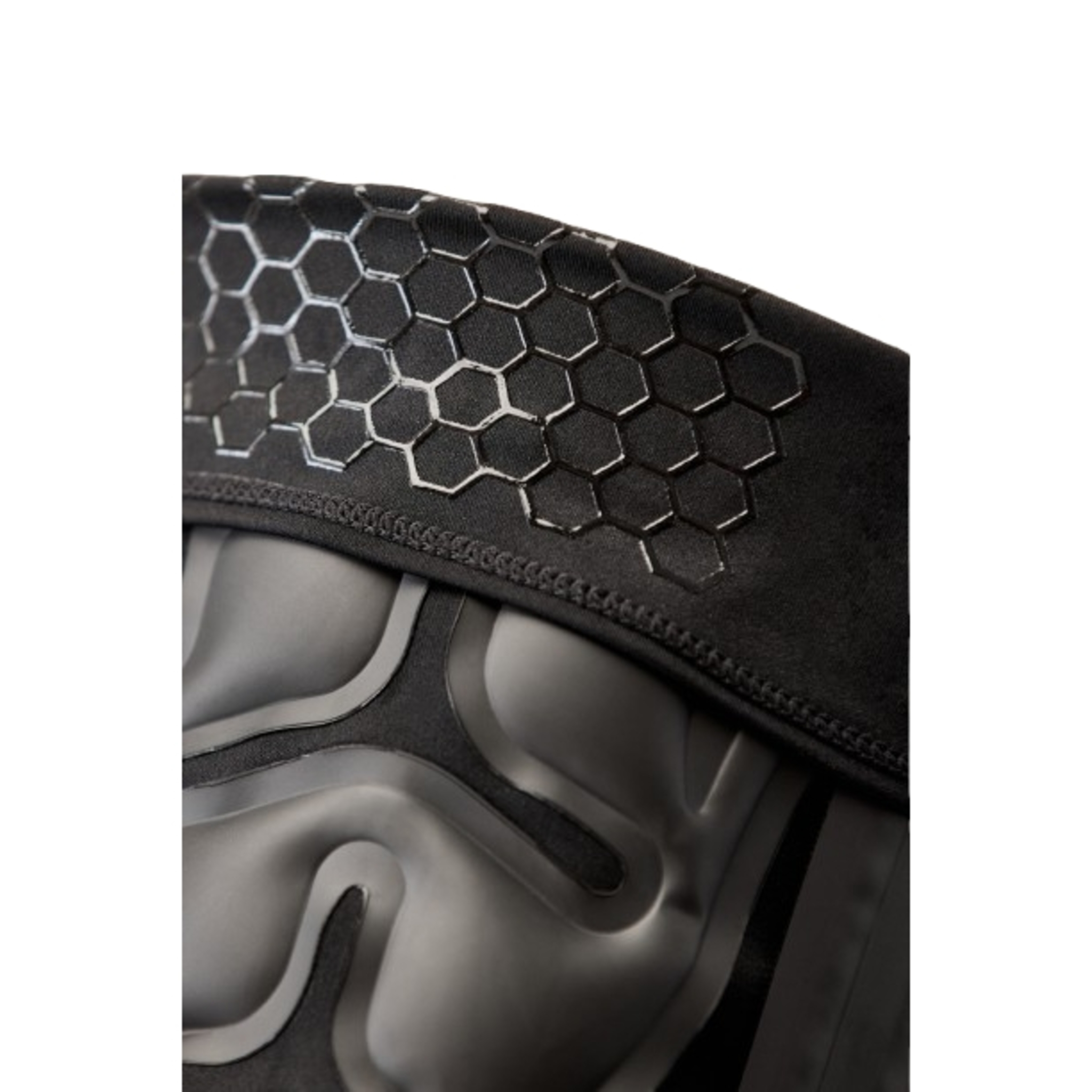

- Silicone print design that ensures a snug fit
- Integrated pump and release valve to self-manage the socket fit
- Can easily be adjusted through clothing without removing the prosthesis
- Improves comfort and socket fit
- Online Assistance Tool
- Online Sizing Tool
Specifications
- Amputation Level: Transfemoral
- Material: Nylon, Elastane, TPU, Spring steel, Silicone
- Profile: Uniform
- Style: Standard
- Color: Black
- Thickness (mm): N/A
- Length: Short, Long
- Sizes (cm): 32-62
- Warranty: 6 months from fit date
Product can only be returned if it has not been used/ worn outside of clinic and must be in original packaging.
