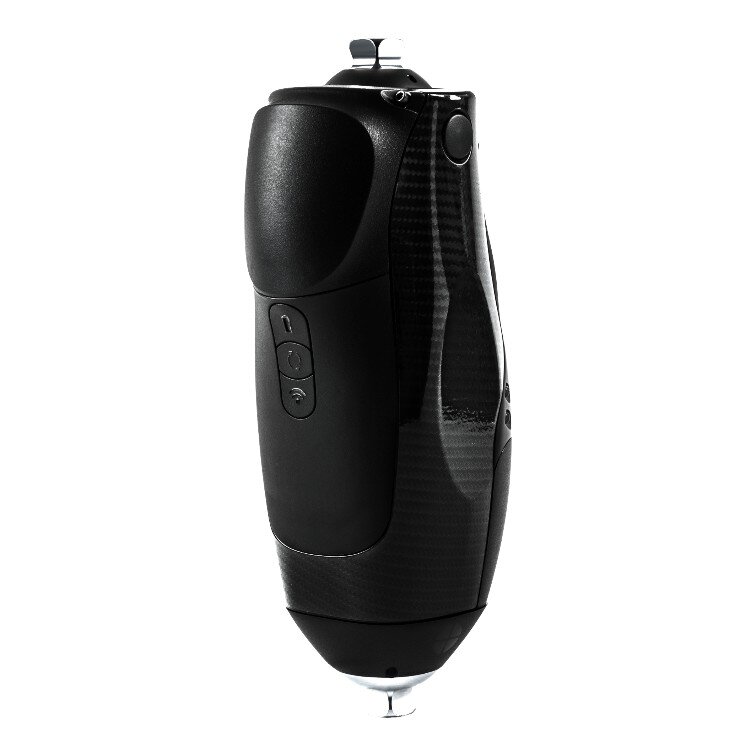

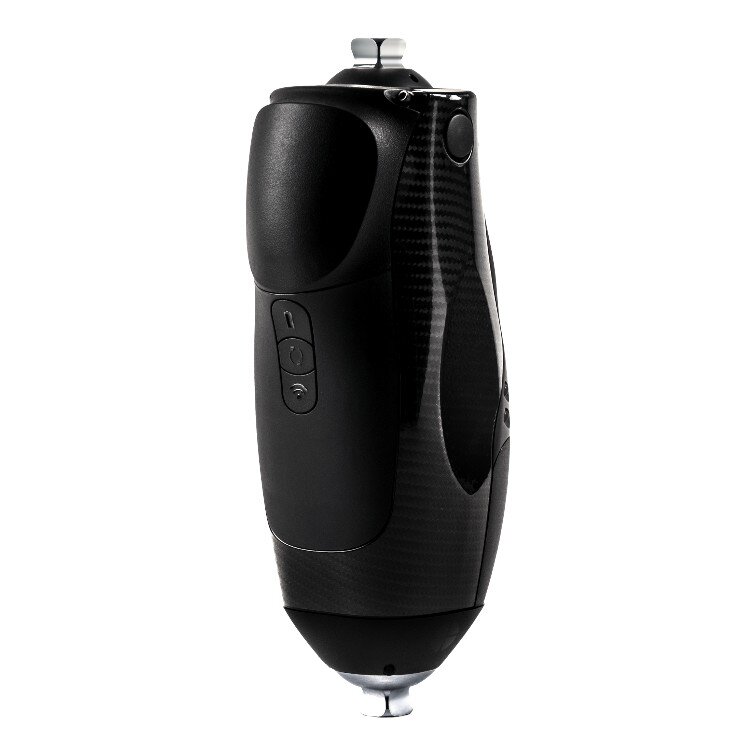

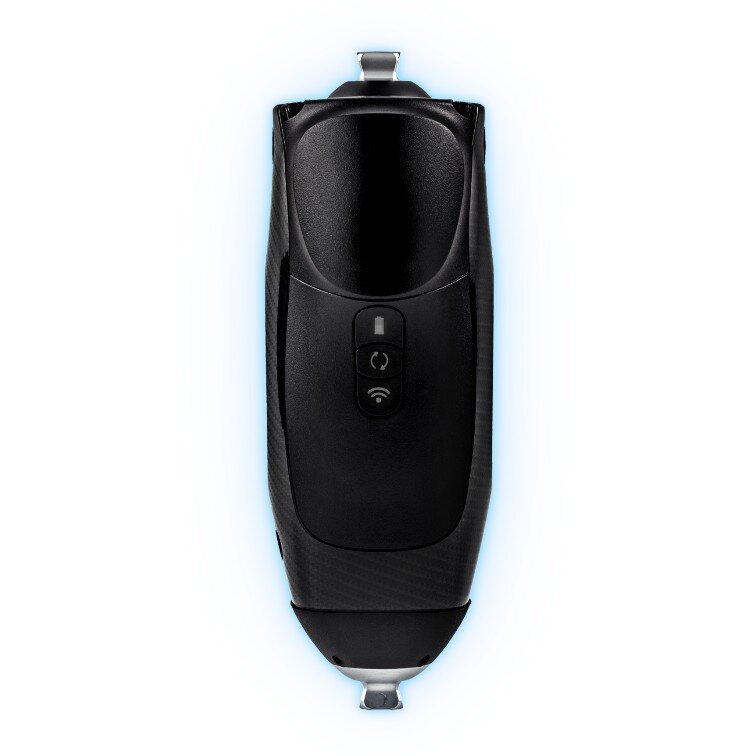

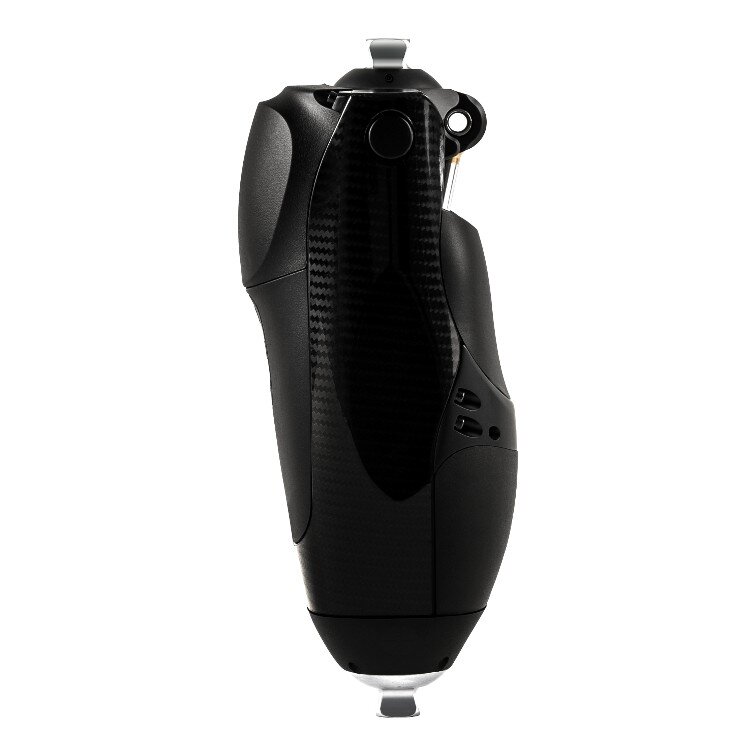

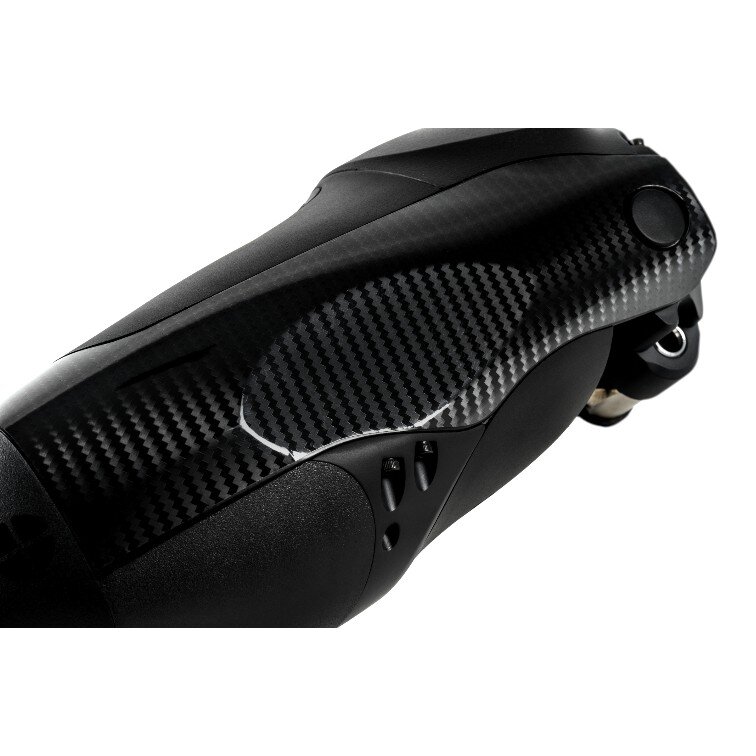

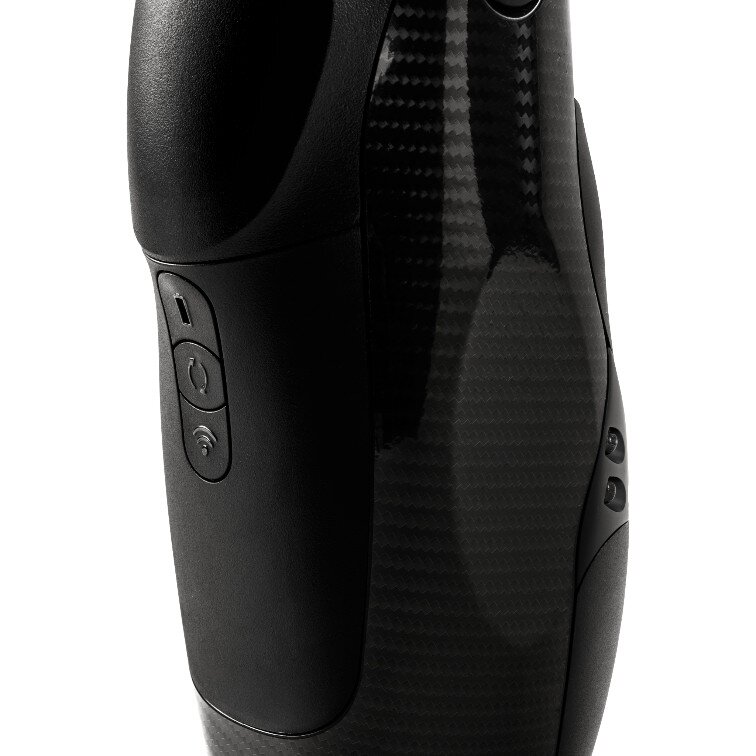

QUATTRO 2 Microprocessor Knee
QUATTRO 2 Microprocessor Knee
- Select option
- Male Pyramid Adapter
- Threaded Adapter
Quick Links
| Part # | Description |
|---|
Product Information
The Quattro 2 adapts to the unique gait of the user, delivering smoother transitions and a more intuitive experience so movement feels natural and the only thing felt is control. Powered by a single bidirectional valve capable of continuous resistance modulation, it reacts twice as fast and adjusts within milliseconds to stay in sync with user intent, resulting in smoother, more natural, and more comfortable motion. With an 8.5" build height, the Quattro 2 expands compatibility with a wider range of feet, ankles, and running blades. Featuring up to 20 pre-set activities, independent stair ascent, stair descent, and ramp resistance, it adapts to whatever the day demands. Remote firmware updates keep the knee current with the latest software enhancements.
- Angle sensor is 10x more sensitive than traditional MPKs
- USBC-Power (Optional)
- IP-68 Water Rating
- Battery Life: 2-3 Days
Specifications
- Activity Level: K3, K4
- Knee Design Type: Microprocessor, Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Hydraulic
- Stance Phase: Hydraulic
- Control Frame Material: N/A
- Product Weight (g): 1,655
- Maximum User Weight: 330lbs (150kg)
- Maximum Knee Flexion Angle: 135 Degrees
- Proximal Connection: Pyramid Adapter, Threaded Adapter
- Distal Connection: Pyramid Adapter
- Trial Period: N/A
- Warranty: 36 months from invoice date
Order form required with order of knee.
QUATTRO Care Package includes 36-month extended warranty and the standard 36 month warranty.
The following timeframes are recommended by the manufacturer to have a full-service check performed: 24 months = 36th-month 36 months = 36-month and 54th-month
Frequently Bought Together
QUATTRO 2 Battery Components
By Proteor USAThe QUATTRO 2 USB-C Booster Adapter lets the custom QUATTRO 2 charging port plug into a USB-C power source* *Required Power Adapter: 18W or higher [9V or 15V] Battery Pack / Wall Adapter not included
